Outbound requests

ApiTraffic records the calls your application makes out to other APIs - payment providers, shipping and tax services, your own internal services - and links each one to the inbound request that caused it. A request in the dashboard then shows its downstream calls with their own timing, status, headers and bodies, so a slow or failing endpoint points at the dependency responsible.

Outbound capture is on by default in every Node SDK package and the Strapi plugin. It needs no code beyond registering ApiTraffic.

How outbound calls are captured #

The SDK hooks the two ways Node.js makes HTTP calls:

Both hooks produce the same record, so an axios call and a fetch call to the same service look the same in the dashboard.

Capture is read-only. Your call is sent exactly as your code wrote it, and bodies are read from copies. If anything about capture fails, the call still goes through: you lose the record, never the request.

Where outbound calls appear #

• Inside a request. A call made while handling an inbound request appears on that request as an http.out span in its waterfall, and as an outbound record linked to it. Requests made in parallel keep their own calls, even on shared keep-alive connections.
• Outside a request. Calls made by background jobs, timers or startup code have no inbound request. They are still recorded as outbound requests on their own.
• Failed calls. A call that gets no response at all (a DNS failure, a refused or reset connection, a timeout) is shown as a failed http.out span on the request that made it.

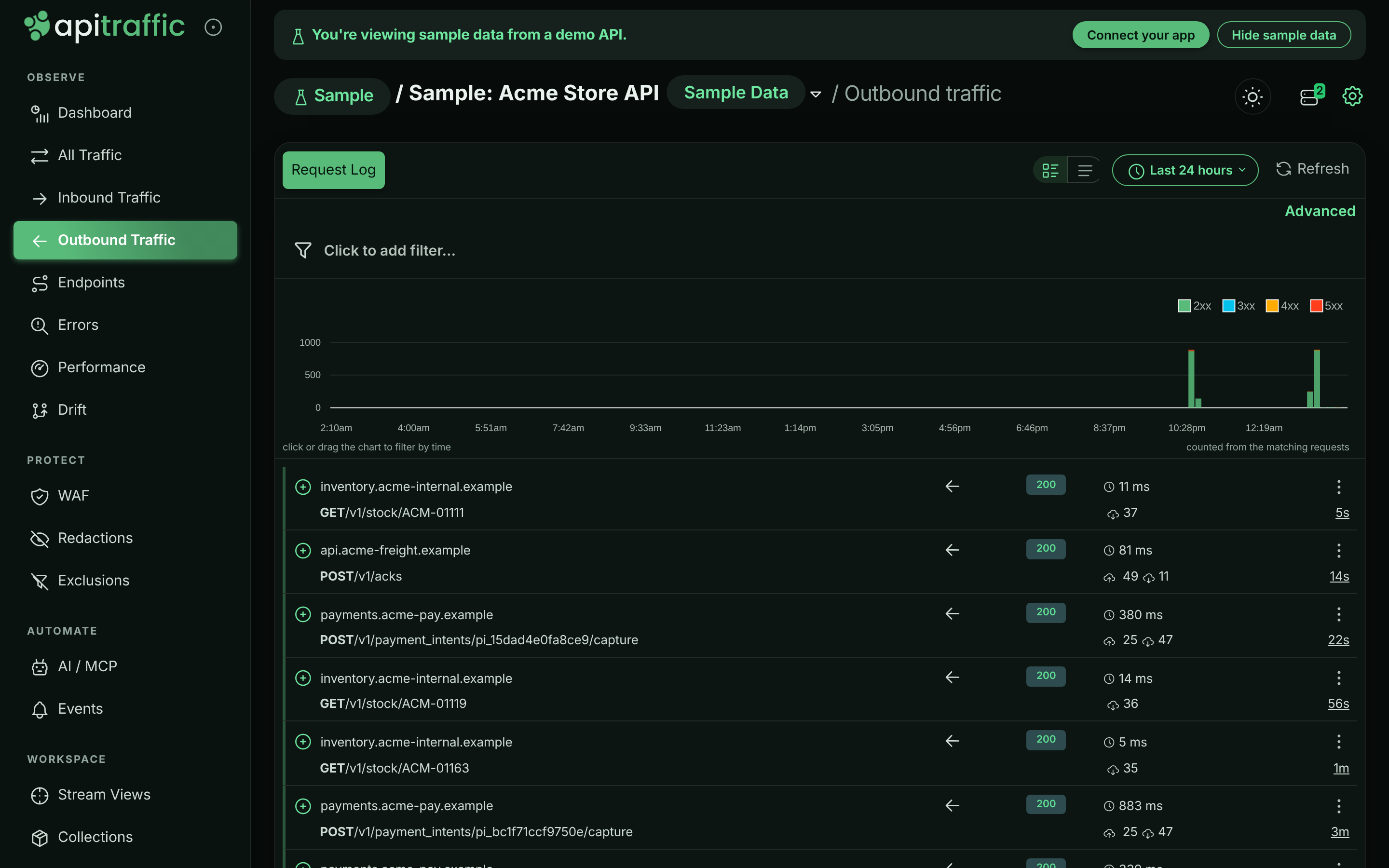

Outbound traffic has its own view in each bucket. In the sample data, for example, calls from the Acme Store API to payments.acme-pay.example and api.acme-freight.example appear under each checkout.

Outbound calls from the sample Acme Store API.

Turn outbound capture off #

With interceptOutbound off, the SDK leaves http, https and fetch untouched. With only captureFetch off, an egress firewall policy still applies to fetch calls. See SDK configuration.

When a body is not captured #

A record can arrive with a body shown as not captured. This is deliberate: it happens when reading the body would interfere with your call or hold too much data in memory.

• The body is over the size cap. Outbound bodies are captured up to maxFetchBodyLength, 512 KB by default. On http/https a larger body is cut at the cap. On fetch, a response that declares a Content-Length over the cap is recorded without its body; a response without one (chunked) is captured as your code reads it, and cut at the cap.
• The body is not text. Images, archives, application/octet-stream and other binary types are recorded as [binary body omitted: …] with their size.
• The response is compressed (Content-Encoding such as gzip or br) on an http/https call. It is recorded as [compressed body not captured: …]. fetch responses are decompressed by Node, so their bodies are captured.
• It is a stream on fetch. Server-sent events (text/event-stream), NDJSON and similar streaming responses are recorded with metadata only, so ApiTraffic never keeps a stream open that your code has cancelled. On http/https, server-sent events are captured as your code reads them, up to the cap.
• Your code never reads a chunked fetch response. A response without a Content-Length is captured as your code reads it, so one it has not read within 10 seconds is recorded with metadata only. One your code stops reading part way for 10 seconds, or is still reading a minute after it started, is recorded with what it read so far, marked truncated.
• The fetch request body is a stream, FormData or Blob. Reading it would consume the body your call is about to send, so it is left untouched.

Once captured, outbound bodies go through the same limits as inbound ones, including maxBodyBytes.

When an outbound call is not captured #

• Outbound capture is off, through interceptOutbound or, for fetch only, captureFetch.
• The call was made before ApiTraffic started. The hooks are installed when the SDK sets up, which begins when you call the framework function (apitraffic.express() and so on). A call made at import time, before that, is not seen.
• Something replaced globalThis.fetch afterwards. Libraries that wrap fetch are fine: ApiTraffic’s hook keeps working underneath, and installing it twice never stacks wrappers. A library that assigns a brand-new function to globalThis.fetch (some mocking and polyfill packages do) removes the hook. Set up ApiTraffic after any library that replaces fetch wholesale.
• The client bypasses both hooks, such as undici.request or an undici Pool. With APM installed these still appear, with timing and metadata but no bodies.
• The call is to ApiTraffic itself. The SDK’s own traffic to the ingest and settings hosts is never reported.

Watch for new hosts #

Every host your app calls out to can be kept in a list per bucket, with an alert the first time the app calls one it has never called before. A dependency that starts calling home after an update shows up the first time it does. See Watch for new outbound destinations.

Redaction and exclusions #

Outbound records go through the same redaction rules and exclusions as inbound traffic, in your process, before anything is sent. Credential headers such as Authorization on an outbound call are always masked.

Related #

• SDK configuration: Capture switches and size limits.

• Request details: See a request’s outbound calls in its waterfall.

• How APM works: Database, cache and queue work alongside outbound calls.

• Firewall policies: Inspect and block outbound calls with egress rules.
